Mechanical Seals TB208

Mechanical Seals TB208
Mechanical Seals TB208Mechanical Seals TB208
group name
Parallel Spring O-Ring Mechanical Seal
Min Order
1 piece
brand name
TOPBON Mechanical Seal Manufacturer
model
TB208
update time
Wed, 04 Dec 2024 16:30:22 GMT

Paramtents

  • Temperature -30℃-200℃

  • Speed ≦10m/s

  • Pressure ≦1.2MPA

  • Rotary Ring Material CAR/SIC/TC

  • Stationary Ring Material CER/SIC/TC

  • O-Ring Material NBR/EPDM/VITON

  • Spring & Metal Parts SUS304/SUS316

  • Application Clean Water,Sewage Water,Oil

Packging & Delivery

  • Min Order1 piece

Briefing

Replacement to:

Detailed

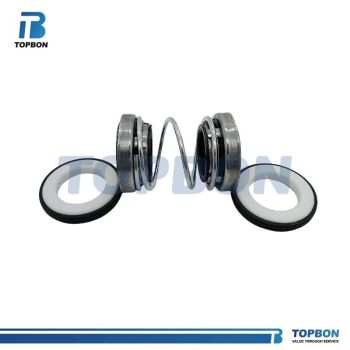

Mechanical seal TB208
Replacement to:


Operational Conditions:
Temperature: -30℃ to +200℃
Pressure: ≤1.2MPa
Speed: ≤10m/s

Materials:
Stationary Ring: Cermic, Silicon Carbide, TC
Rotary Ring: Plastic Carbon, Carbon, Silicon Carbide, TC
Secondary Seal:NBR/EPDM/VITON
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
Product details
SIZE
Product Number
Size/
Metric
d1
d7
L1
L3
10
10
21
30
5.0
12
12
23
30
5.0
14
14
26/28
38
6.0
16
16
28/30
38
5.0
18
18
33/35
38
5.0
20
20
35/36
40
5.5
25
25
40/41
48
8.0
30
30
45
51
8.0
35
35
50
51
8.0
40
40
58
58
9.0
45
45
63
58
9.0
