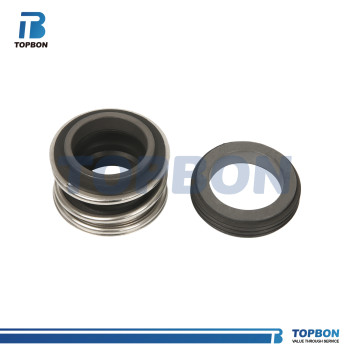

Mechanical Seal TBKSB01 replace AES B02K, Burgmann MG1S, Flowservw KZN, Suit for K.S.B Pumps
- group name
- KSB PUMP SEAL
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TBKSB01
- update time
- Thu, 21 Nov 2024 20:16:53 GMT
Paramtents
Material B,Q2,U2,P,E,N,V,F,G,Alfa
Packging & Delivery
-
Min Order1 piece
Briefing
Mechanical Seal TBKSB01 replace AES B02K, Burgmann MG1S, Flowserve KZN, Suit for K.S.B Pumps
Detailed
Mechanical seal TBKSB01
Operational Conditions: Seal Size:
Clean Water
sewage water
oil and other moderately corrosive fluid
Product details
Drawing
|
d (mm) |
D1 | D3 | L1 | L2 |
10 | 19.60 | 20.00 | 26.00 | 6.60 |
15 | 25.00 | 25.00 | 28.40 | 6.60 |
16 | 27.00 | 26.00 | 22.20 | 12.10 |
22 | 37.00 | 36.00 | 25.50 | 12.10 |
28 | 43.00 | 47.00 | 36.50 | 14.40 |
38 | 56.00 | 58.00 | 42.00 | 13.20 |
48 | 66.00 | 69.30 | 50.50 | 9.60 |
