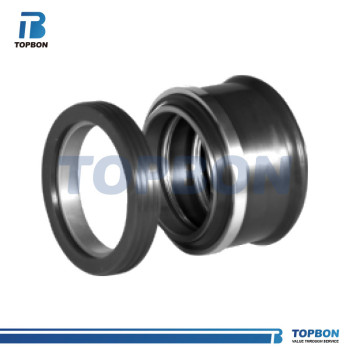

Mechanical Seal TBHID01 replace Lidering HI, USVG-7087, Suit for HIDROSTAL Pumps
- group name
- HIDROSTAL PUMP SEAL
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TBHID01
- update time
- Wed, 22 Jan 2025 13:13:50 GMT
Paramtents
Material B,A1,Q1,Q2,U2,P,E,N,V,F,G
Size 28MM 35MM 50MM
Packging & Delivery
-
Min Order1 piece
Briefing
Mechanical Seal TBHID01 replace Lidering HI, USVG-7087, Suit for HIDROSTAL Pumps
Detailed
Mechanical seal TBHID01
Replace Lidering HI, USVG-7087, Suit for HIDROSTAL Pumps
Operational Conditions: Seal Size:
Clean Water 28MM 35MM 50MM
sewage water
oil and other moderately corrosive fluid
Product details
Drawing
|
d (mm)
|
d | D1 | D3 | L1 | L2 |
28 | 28.00 | 44.00 | 50.00 | 30.00 | 10.00 |
35 | 35.00 | 54.00 | 64.00 | 35.50 | 10.00 |
50 | 50.00 | 70.00 | 74.50 | 45.20 | 12.20 |
|
d (inch)
|
d | D1 | D3 | L1 | L2 |
1.125 | 28.58 | 44.45 | 50.00 | 30.00 | 11.10 |
1.500 | 38.10 | 53.98 | 66.00 | 35.50 | 10.00 |
2.000 | 50.80 | 69.85 | 75.50 | 45.20 | 13.00 |
