Mechanical Seal TBGLF14L replace AES M010SA,ROPLAN210, Lowe rSeal for Grundfos S range submersible pump seals
- group name
- GRUNDFOS PUMP SEAL
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TBGLF14U
- update time
- Thu, 07 Nov 2024 10:36:51 GMT
Paramtents
Material B,Q2,U2,P,E,V,F,G
Size 25MM 32MM 38MM 50MM 65MM
Packging & Delivery
-
Min Order1 piece
Briefing
Mechanical Seal TBGLF14L replace AES M010SA,ROPLAN210, Lowe rSeal for Grundfos S range submersible pump seals
Detailed

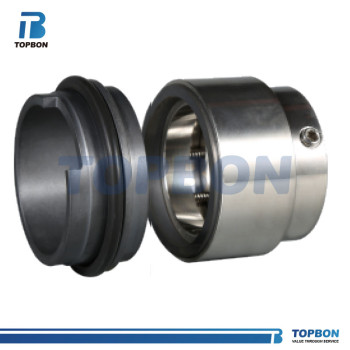

Mechanical seal TBGLF14L
Replace AES M010SA,ROPLAN210, Lower Seal for Grundfos S range submersible pump seals
Operational Conditions: Seal Size:
Clean Water 25MM 32MM 38MM 50MM 65MM
sewage water
oil and other moderately corrosive fluid
Product details
Drawing
|
d (mm) |
D1 | D3 | L1 | L2 |
25 | 38.00 | 39.00 | 29.90 | 9.60 |
30 | 48.00 | 46.00 | 32.40 | 11.00 |
38 | 55.00 | 54.00 | 33.90 | 11.20 |
50 | 69.30 | 66.00 | 34.40 | 14.00 |
65 | 85.40 | 85.00 | 38.90 | 15.30 |
