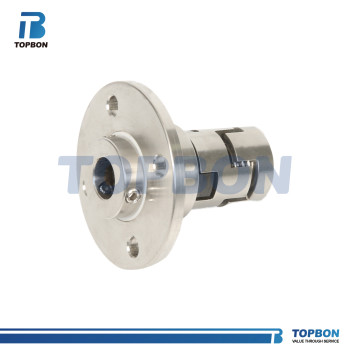

Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps

Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps
Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumpsMechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumpsMechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps
group name
GRUNDFOS PUMP SEAL
Min Order
1 piece
brand name
TOPBON Mechanical Seal Manufacturer
model
TBGLF13
update time
Thu, 21 Nov 2024 19:38:15 GMT
contact supplier

Paramtents

  • Material B,Q2,U2,P,E,V,F,G

  • Size 22MM

Packging & Delivery

  • Min Order1 piece

Briefing

Mechanical Seal TBGLF13 Suit for GRUNDFOS CR, CRN and CRI series pumps

Detailed

Product Introduction
Product Size
Product Details
Product Model
Mechanical seal TBGLF13

Suit for GRUNDFOS CR, CRN and CRI series pumps



Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Materials:
B,Q2,U2,P,E,V,F,G
Operational Conditions:                                                           Seal Size:

Clean Water                                                                                                                                       22MM

sewage water

oil and other moderately corrosive fluid
Product details
Drawing
Size/
Metric
d0
d
D3
D2
D1
L1
L2
L3
L6
14
18
14
32
21
25
30.5
12.0
18.5
6.0
16
20
16
34
23
27
30.5
12.0
18.5
6.0
18
22
18
36
27
33
31.5
13.5
20.5
6.5
20
24
20
38
29
35
31.5
13.5
20.5
6.5
22
26
22
40
31
37
31.5
13.5
20.5
6.5
24
28
24
42
33
39
34.2
13.3
20.3
6.7
25
30
25
44
34
40
34.5
13.0
20.0
7.0
28
33
28
47
37
43
37.5
12.5
19.5
7.5
30
35
30
49
39
45
38.0
12.0
19.0
8.0
32
38
32
54
42
48
38.0
12.0
19.0
8.0
33
38
33
54
42
48
38.0
12.0
19.0
8.0
35
40
35
56
44
50
38.0
12.0
19.0
8.0
38
43
38
59
49
56
39.5
13.0
20.0
10.0
40
45
40
61
51
58
39.5
13.0
20.0
10.0
43
48
43
64
54
61
39.5
13.0
20.0
10.0
45
50
45
66
56
63
39.5
13.0
20.0
10.0
48
53
48
69
59
66
39.5
13.0
20.0
10.0
50
55
50
71
62
70
44.0
13.5
20.5
11.5
53
58
53
78
65
73
44.0
13.5
20.5
11.5
55
60
55
80
67
75
44.0
13.5
20.5
11.5
58
63
58
83
70
78
49.0
13.5
20.5
11.5
60
65
60
85
72
80
49.0
13.5
20.5
11.5
63
68
63
88
75
83
49.0
13.5
20.5
11.5
65
70
65
90
77
85
49.0
13.5
20.5
11.5
70
75
70
95
83
92
55.5
14.5
21.5
13.5
75
80
75
104
85
97
55.5
14.5
21.5
13.5
80
85
80
109
95
105
55.0
15.0
22.0
13.0
85
90
85
114
100
110
60.0
15.0
22.0
13.0
90
95
90
119
105
115
60.0
15.0
22.0
13.0
95
100
95
124
110
120
60.0
15.0
22.0
13.0
100
105
100
129
115
125
60.0
15.0
22.0
13.0
