Mechanical seal TB560DE replace Lidering TS-H2530/3035, Suitfor TSURUMI Pumps
- group name
- EBARA-EUREKA-TSURUMI PUMP SEAL
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TB560DE
- update time
- Thu, 21 Nov 2024 17:02:10 GMT
Paramtents
Material B,A1,Q1,Q2,U2,P,E,N,V,F,G
Size 25MM 30MM
Packging & Delivery
-
Min Order1 piece
Briefing
Mechanical seal TB560DE replace Lidering TS-H2530/3035, Suitfor TSURUMI Pumps
Detailed

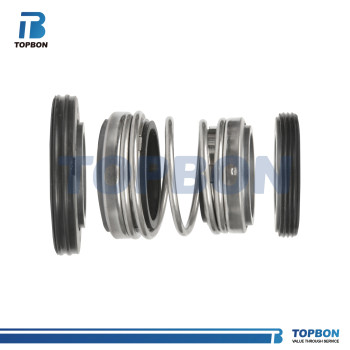

Mechanical seal TB560DE
Product details
Drawing
|
Size/ MM |
d | d0 | D3 | D4 | D5 | D7 | L | L2 |
n-M5
|
20F | 20.00 | 20.00 | 38.00 | 56.00 | 68.00 | 44.00 | 49.50 | 7.50 | 4-M5 |
25/30 | 25.00 | 30.00 | 50.00 | 62.00 | 76.00 | 50.00 | 54.00 | 8.00 | 4-M5 |
30/35 | 30.00 | 35.00 | 58.00 | 72.00 | 95.00 | 57.00 | 62.00 | 9.00 | 6-M5 |
35/40 | 35.00 | 40.00 | 64.00 | 80.00 | 105.00 | 64.00 | 65.00 | 9.00 | 6-M5 |
45/50 | 45.00 | 50.00 | 70.00 | 92.00 | 115.00 | 70.00 | 69.00 | 10.00 | 8-M5 |
