Mechanical seal TBAL92-42 replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series Pumps

Mechanical seal TBAL92-42 replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series Pumps
Mechanical seal TBAL92-42 replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series PumpsMechanical seal TBAL92-42 replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series PumpsMechanical seal TBAL92-42 replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series Pumps
group name
ALFA LAVAL PUMP SEAL
Min Order
1 piece
brand name
TOPBON Mechanical Seal Manufacturer
model
TBAL92-42
update time
Thu, 05 Dec 2024 10:33:49 GMT

Paramtents

  • Rotary Ring Material CAR/SIC

  • Stationary Ring Material SUS304/SUS316SIC/TC

  • O-Ring Material VIT,EPDM

  • Spring & Metal Parts SUS304/SS316

Packging & Delivery

  • Min Order1 piece

Briefing

TBAL92-42 range of the Mechanical seals, replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series Pumps

Detailed

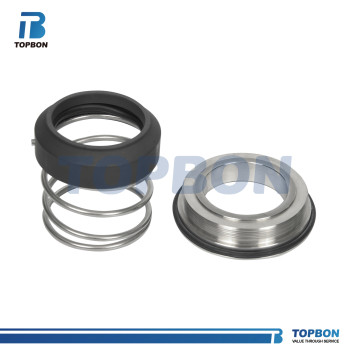

Mechanical seal TBAL92-42
TBAL92-42 Mechanical seal replace AES AES P07-42(42mm),
Suit for Alafa Laval LKH Series Pumps


Operational Conditions:
Temperature: -20℃ to +140℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Materials:
Stationary Ring: SUS304/316, SIC, TC
Rotary Ring: CAR, SIC, TC
Secondary Seal: VIT, EPDM
Spring and Metal Parts: SUS304,SUS316
Operational Conditions:

Clean Water

sewage water

oil and other moderately corrosive fluid
Seal Size:
42mm
Product details
Drawing
