Mechanical Seal TB80 replace Burgmann M32, AES T01, VULCAN 8
- group name
- Conical Spring Mechanical Seal
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TB80
- payment method
- T/T
- update time
- Thu, 21 Nov 2024 17:06:47 GMT
Paramtents
Temperature -30℃-200℃
Speed ≦20m/s
Pressure ≦1.2MPA
Stationary Seat TBG6
Rotary Ring Material CAR/SIC/TC
Stationary Ring Material CER/SIC/TC
O-Ring Material VIT/NBR/EPDM
Spring & Metal Parts SUS304/SUS316
Application Clean Water，Sewage Water，Oil
Packging & Delivery
-
Min Order1 piece
Briefing
Replacement to:
Burgmann M32 mechanical seal
AES T01 mechanical seal
VULCAN 8
Burgmann M32 mechanical seal
AES T01 mechanical seal
VULCAN 8
Detailed

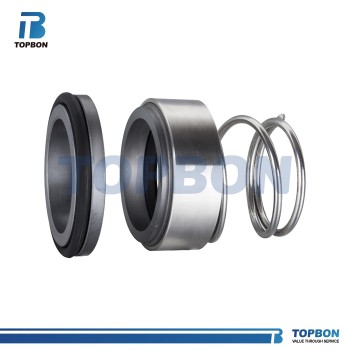

Mechanical seal TB80
Replacement to:
Vulcan 8, Vulcan 8.DIN,Burgmann M32, Burgmann M3N, Flowserve 38, Flowserve 38D, Flowserve 39, Flowserve CRO, Hermetica М211К, Latty T800, LIDERING LS18/ LS19, Roten 2E, Roten L4B, US SEAL VGME-1, US SEAL VGME-2, US SEAL VGME-3,Hecker HN 430N, AESSEAL T01, AESSEAL T01D, AESSEAL T02, Anga A3,
Product details
SIZE
|
Size/ Metric |
d | D3 | D2 | D1 | d1 | L1 |
|
10
|
19.2 | 15.5 | 19.0 | 15.5 | 6.6 | 5.0 |
|
12
|
21.6 | 17.5 | 21.0 | 15.5 | 5.6 | 5.0 |
|
14
|
24.6 | 20.5 | 23.0 | 15.5 | 5.6 | 5.0 |
|
15
|
24.6 | 20.5 | 24.0 | 15.5 | 6.6 | 5.0 |
|
16
|
28.0 | 22.0 | 26.0 | 17.5 | 7.5 | 6.5 |
|
18
|
30.0 | 24.0 | 29.0 | 18.5 | 8.0 | 6.5 |
|
19
|
31.0 | 25.0 | 31.0 | 20.0 | 7.5 | 6.5 |
|
20
|
35.0 | 29.5 | 31.0 | 20.0 | 7.5 | 6.5 |
|
22
|
35.0 | 29.5 | 33.0 | 21.5 | 7.5 | 6.5 |
|
24
|
38.0 | 32.0 | 35.0 | 23.0 | 7.5 | 6.5 |
|
25
|
38.0 | 32.0 | 36.0 | 24.5 | 7.5 | 6.5 |
|
26
|
40.0 | 34.0 | 37.0 | 24.5 | 8.0 | 6.5 |
|
28
|
42.0 | 36.0 | 40.0 | 24.5 | 9.0 | 6.5 |
30 | 45.0 | 39.2 | 43.0 | 24.5 | 10.5 | 6.5 |
32 | 48.0 | 42.2 | 46.0 | 28.0 | 10.5 | 6.5 |
35 | 52.0 | 46.2 | 49.0 | 28.0 | 11.0 | 6.5 |
38 | 55.0 | 49.2 | 53.0 | 31.0 | 10.3 | 6.5 |
40 | 58.0 | 52.2 | 56.0 | 34.0 | 10.8 | 6.5 |
42 | 62.0 | 53.3 | 59.0 | 35.0 | 12.0 | 8.0 |
43 | 62.0 | 54.3 | 59.0 | 35.0 | 12.0 | 8.0 |
45 | 64.0 | 55.3 | 61.0 | 36.5 | 11.6 | 8.0 |
48 | 68.4 | 59.7 | 64.0 | 42.0 | 11.6 | 8.0 |
50 | 69.3 | 60.8 | 66.0 | 43.0 | 11.6 | 8.0 |
55 | 75.4 | 66.5 | 71.0 | 47.0 | 13.3 | 8.0 |
58 | 78.4 | 69.5 | 76.0 | 50.0 | 13.3 | 8.0 |
60 | 80.4 | 71.5 | 78.0 | 51.0 | 13.3 | 8.0 |
65 | 85.4 | 76.5 | 84.0 | 52.0 | 13.0 | 8.0 |
68 | 91.5 | 82.7 | 88.0 | 53.0 | 13.7 | 8.0 |
70 | 92.0 | 83.0 | 90.0 | 54.0 | 13.0 | 8.0 |
75 | 99.0 | 92.2 | 98.0 | 55.0 | 14.0 | 8.0 |
80 | 104.0 | 95.2 | 100.0 | 58.0 | 15.0 | 8.0 |
