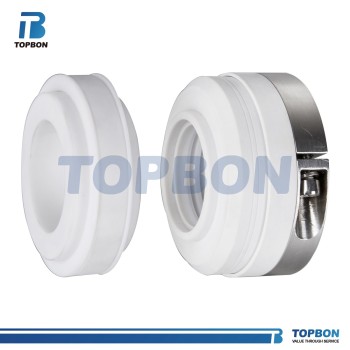

Mechanical seal TBWB2

Mechanical seal TBWB2
Mechanical seal TBWB2Mechanical seal TBWB2Mechanical seal TBWB2Mechanical seal TBWB2
group name
Elastomer Bellow Mechanical Seal
Min Order
1 piece
brand name
TOPBON Mechanical Seal Manufacturer
model
TBWB2
update time
Sat, 23 Nov 2024 16:00:56 GMT
contact supplier

Paramtents

  • Temperature -20℃-120℃

  • Speed ≦10m/s

  • Pressure ≦0.5MPA

  • Rotary Ring Material PTFE/SIC

  • Stationary Ring Material CER/SIC

  • O-Ring Material VIT/NBR/EPDM

  • Spring & Metal Parts SUS304/SUS316

  • Application Clean Water，Sewage Water，Oil

Packging & Delivery

  • Min Order1 piece

Briefing

for industrial pump, replace the mechanical seal of Burgmann and John Crane

Detailed

Product Introduction
Product Size
Product Details
Product Model
Mechanical seal TBWB2
for industrial pump, replace the mechanical seal of Burgmann and John Crane
Operational Conditions:
Temperature: -20℃ to +120℃
Pressure: ≤0.5MPa
Speed: ≤10m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
Product details
SIZE
Size/
Metric
D3
D2
D1
L2
L1
L11
Size/
Inch
D3
D2
D1
L2
L1
L11
25
60
60
47
27
42
45
25.4
60
54
42.86
17.5
42
45
30
67
67
53
27
42
45
28.6
67
60
46.03
27
42
45
32
69
64
50.7
27
42
45
31.75
69
65
50.80
27
42
45
35
72
70
57
27
42
45
34.93
72
68
53.98
27
42
45
40
78
76
62
26
42
45
38.1
76
71
57.15
27
42
45
45
84
82
67
27
44
46
41.28
80
78
63.50
27
42
45
50
88
86
72
27
46
46
44.45
84
81
66.68
27
44
46
55
95
90
77
27
46
46
47.63
86
84
69.85
27
44
46
60
100
95
82
27
46
46
50.8
90
87
73.03
27
46
46
65
105
100
87
27
46
46
53.98
95
97
79.38
33.5
46
46
57.15
98
100
82.55
33.5
46
46
60.3
100
103
85.73
33.5
46
46
