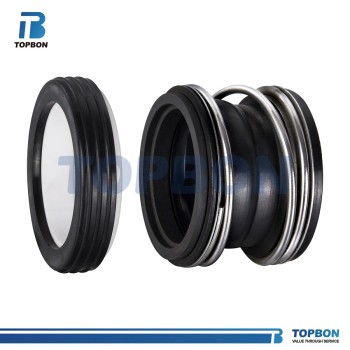

Mechanical seal TB150A replace the of Vulcan 1520

Mechanical seal TB150A replace the of Vulcan 1520
Mechanical seal TB150A replace the of Vulcan 1520Mechanical seal TB150A replace the of Vulcan 1520Mechanical seal TB150A replace the of Vulcan 1520Mechanical seal TB150A replace the of Vulcan 1520
group name
Elastomer Bellow Mechanical Seal
Min Order
1 piece
brand name
TOPBON Mechanical Seal Manufacturer
model
TB150A
payment method
T/T
update time
Wed, 22 Jan 2025 13:14:19 GMT
contact supplier

Paramtents

  • Temperature -40℃-150℃

  • Speed ≦15m/s

  • Pressure ≦1.2MPA

  • Rotary Ring Material CAR/SIC/TC

  • Stationary Ring Material CER/SIC/TC

  • O-Ring Material VIT/NBR/EPDM

  • Spring & Metal Parts SUS304/SUS316

  • Application Clean Water，Sewage Water，Oil

Packging & Delivery

  • Min Order1 piece

Briefing

TB150A
replace the mechanical seal of Vulcan 1520

Detailed

Product Introduction
Product Size
Product Details
Product Model
TB150A mechanical seal
Replace
Vulcan 1520



Operational Conditions:
Temperature: -40℃ to +150℃
Pressure: ≤1.2MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
Product details
SIZE
Size/
Inch
D1
D2
D3
L1
L2
L3
0.375
24.60
16.00
20.0
25.40
8.74
7.47
0.500
27.79
19.05
22.0
25.40
8.74
7.47
0.625
30.95
22.23
26.0
25.40
10.32
8.97
0.750
34.15
25.40
32.0
25.40
10.32
8.97
0.875
37.30
28.58
36.0
25.40
10.32
8.97
1.000
40.50
31.75
39.0
25.40
10.32
8.97
1.125
47.63
35.72
42.0
33.34
11.99
10.46
1.250
50.80
38.89
46.0
33.34
11.99
10.46
1.375
53.98
42.07
49.0
33.34
11.99
10.46
1.500
57.15
45.24
54.0
33.34
11.99
10.46
1.625
60.35
48.42
56.0
33.34
11.99
10.46
1.750
63.50
51.59
61.0
40.48
11.99
10.46
1.875
66.70
54.75
64.0
40.48
11.99
10.46
2.000
69.85
58.00
66.0
40.48
13.50
11.96
2.125
73.05
62.00
69.0
41.00
13.50
11.96
2.250
76.20
65.00
78.0
41.00
13.50
11.96
2.375
79.40
68.00
80.0
41.00
13.50
11.96
2.500
82.55
71.20
83.0
41.00
13.50
11.96
2.625
92.10
78.35
85.0
49.00
15.90
14.50
2.750
95.25
81,10
90.0
49.00
15.90
14.50
2.875
98.45
84.50
96.0
49.00
15.90
14.50
3.000
101.65
88.10
99.0
49.00
15.90
14.50
3.125
111.15
93.68
104.0
56.00
20.00
18.50
3.250
114.30
96.85
104.0
56.00
20.00
18.50
3.375
117.50
100.00
109.0
56.00
20.00
18.50
3.500
120.65
103.18
114.0
56.00
20.00
18.50
3.625
123.85
106.35
114.0
59.00
20.00
18.50
3.750
127.00
109.52
119.0
59.00
20.00
18.50
3.875
130.20
112.65
122.0
62.00
20.00
18.50
4.000
133.35
115.88
124.0
62.00
20.00
18.50
