Mechanical Seal TB6
- group name
- Elastomer Bellow Mechanical Seal
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TB6
- payment method
- T/T
- update time
- Wed, 16 Oct 2024 18:29:50 GMT
Paramtents
Temperature -20℃-120℃
Speed ≦10m/s
Pressure ≦0.5MPA
Rotary Ring Material CAR/SIC/TC
Stationary Ring Material CER/SIC/TC
O-Ring Material VIT/NBR/EPDM
Spring & Metal Parts SUS304/SUS316
Application Clean Water，Sewage Water，Oil
Packging & Delivery
-
Min Order1 piece
Briefing
TB6 mechanical seal Replace for industrial pump,
replace the mechanical seal of Burgmann and John Crane
replace the mechanical seal of Burgmann and John Crane
Detailed

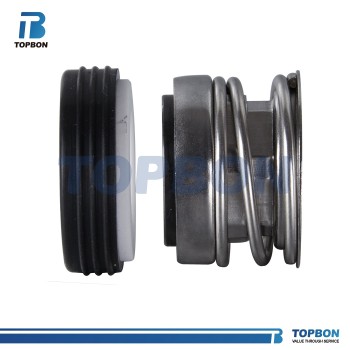

Mechanical seal TB6
Replace the mechanical seal of Burgmann and John Crane
Product details
SIZE
|
Size/ Inch |
d | D3 | D1 | L1 | L2 |
|
0.375
|
9.5 | 23.29 | 22.23 | 16.66 | 7.14 |
|
0.500
|
12.7 | 23.29 | 25.40 | 16.66 | 6.35 |
|
0.625
|
15.8 | 30.10 | 31.75 | 18.24 | 10.31 |
|
0.750
|
19.0 | 33.07 | 34.93 | 18.24 | 10.31 |
|
0.875
|
22.2 | 36.30 | 38.10 | 20.63 | 10.31 |
|
1.000
|
25.4 | 39.42 | 41.28 | 20.63 | 11.10 |
