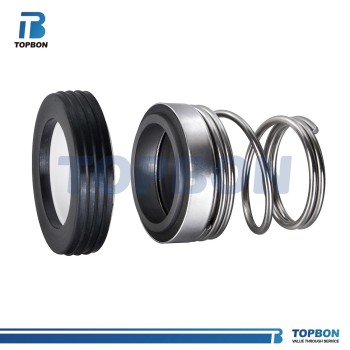

Mechanical Seal TBMG912 Replace Burgmann MG9

Mechanical Seal TBMG912 Replace Burgmann MG9
Mechanical Seal TBMG912 Replace Burgmann MG9Mechanical Seal TBMG912 Replace Burgmann MG9Mechanical Seal TBMG912 Replace Burgmann MG9Mechanical Seal TBMG912 Replace Burgmann MG9
group name
Parallel Spring Diaphragm Mechanical Seal
Min Order
1 piece
brand name
TOPBON Mechanical Seal Manufacturer
model
TBMG912
payment method
T/T
update time
Wed, 16 Oct 2024 18:38:43 GMT
contact supplier

Paramtents

  • Temperature -20℃-120℃

  • Speed ≦10m/s

  • Pressure ≦1.0MPA

  • Rotary Ring Material CAR/SIC/TC

  • Stationary Ring Material CER/SIC/TC

  • O-Ring Material VIT/NBR/EPDM

  • Spring & Metal Parts SUS304/SUS316

  • Application Clean Water，Sewage Water，Oil

Packging & Delivery

  • Min Order1 piece

Briefing

TBMG912 mechanical seal
Replace
Burgmann MG9
AES mechanical seal
John Crane mechanical seal

Detailed

Product Introduction
Product Size
Product Details
Product Model
Mechanical seal TBMG912
Replace:
Burgmann MG9
Operational Conditions:
Temperature: -20℃ to +120℃
Pressure: ≤1.0MPa
Speed: ≤10m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
Product details
SIZE
Size/
Metric
d
D3
D2
D1
L1
L12
L13
L14
L2
10
10
19.6
17
21
44.0
33.4
25.9
25.0
6.6
12
12
21.6
19
23
44.0
33.4
25.9
25.0
6.6
14
14
24.0
21
25
44.0
33.4
28.4
25.0
6.6
15
15
25.0
-
-
44.0
-
-
25.0
-
16
16
26.5
23
27
44.0
33.4
28.4
25.0
6.6
18
18
29.0
27
33
44.0
37.5
30.0
25.0
7.5
20
20
31.5
29
35
44.0
37.5
30.0
25.0
7.5
22
22
33.0
31
37
44.0
37.5
30.0
25.0
7.5
24
24
37.0
33
39
44.0
42.5
32.5
25.0
7.5
25
25
38.0
34
40
44.0
42.5
32.5
25.0
7.5
28
28
41.0
37
43
60.0
42.5
35.0
33.0
7.5
30
30
43.0
39
45
60.0
42.5
35.0
33.0
7.5
32
32
45.0
42
48
60.0
47.5
35.0
33.0
7.5
33
33
46.0
42
48
60.0
47.5
35.0
33.0
7.5
35
35
48.0
44
50
60.0
47.5
35.0
33.0
7.5
38
38
52.5
49
56
60.0
46.0
36.0
33.0
9.0
40
40
55.5
51
58
60.0
46.0
36.0
33.0
9.0
43
43
58.5
54
61
71.0
51.0
36.0
41.0
9.0
45
45
60.5
56
63
71.0
51.0
36.0
41.0
9.0
48
48
64.0
59
66
71.0
51.0
36.0
41.0
9.0
50
50
66.0
62
70
72.5
50.5
38.0
42.5
9.5
53
53
69.0
65
73
71.0
59.0
36.5
41.0
11.0
55
55
71.0
67
75
71.0
59.0
36.5
41.0
11.0
58
58
76.0
70
78
71.0
59.0
41.5
41.0
11.0
60
60
78.0
72
80
71.0
59.0
41.5
41.0
11.0
63
63
82.0
75
83
-
59.0
41.5
-
11.0
65
65
84.0
77
85
70.0
69.0
41.5
49.0
11.0
68
68
87.0
81
90
70.0
68.7
41.2
49.0
11.3
70
70
89.0
83
92
70.0
68.7
48.7
49.0
11.3
75
75
95.0
88
97
73.0
68.7
48.7
52.0
11.3
80
80
101.5
95
105
79.0
78.0
48.0
56.0
12.0
85
85
-
100
110
79.0
76.0
46.0
56.0
14.0
90
90
111.5
105
115
83.0
76.0
51.0
59.0
14.0
95
95
-
110
120
83.0
76.0
51.0
59.0
14.0
100
100
122.5
115
125
86.0
76.0
51.0
62.0
14.0
