Mechanical Seal TB80D replace Burgmann M32N, AES T01D, VULCAN 8.DIN
- group name
- Conical Spring Mechanical Seal
- Min Order
- 1 piece
- brand name
- TOPBON Mechanical Seal Manufacturer
- model
- TB80D
- payment method
- T/T
- update time
- Thu, 21 Nov 2024 19:33:42 GMT
Paramtents
Temperature -30℃-200℃
Speed ≦20m/s
Pressure ≦1.2MPA
Stationary Seat TBG9
Rotary Ring Material CAR/SIC/TC
Stationary Ring Material CER/SIC/TC
O-Ring Material VIT/NBR/EPDM
Spring & Metal Parts SUS304/SUS316
Application Clean Water，Sewage Water，Oil
Packging & Delivery
-
Min Order1 piece
Briefing
Replacement to:
Burgmann M32N mechanical seal
AES T01D mechanical seal
VULCAN 8.DIN mechanical seal
Burgmann M32N mechanical seal
AES T01D mechanical seal
VULCAN 8.DIN mechanical seal
Detailed

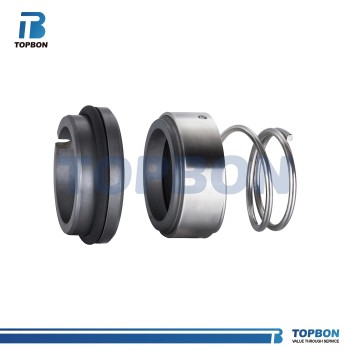

Mechanical seal TB80D
Replacement to:
Burgmann M32N
AESSEAL T01D seal
Flowserve 38 seal
Product details
SIZE
|
Size/ Metric |
D1 | D2 | D3 | L1 | L2 |
L3
|
d1
|
L4
|
|
10
|
21.00 | 17.0 | 19.00 | 15.50 | 10.00 |
5.50
|
3.00
|
5.00
|
|
12
|
23.00 | 19.0 | 21.00 | 16.00 | 10.00 |
5.50
|
3.00
|
5.00
|
|
14
|
25.00 | 21.0 | 23.00 | 16.50 | 10.00 |
5.50
|
3.00
|
5.00
|
|
16
|
27.00 | 23.0 | 26.00 | 18.00 | 10.00 |
5.50
|
3.00
|
5.00
|
|
18
|
33.00 | 27.0 | 29.00 | 19.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
20
|
35.00 | 29.0 | 31.00 | 22.00 | 11.50 |
7.00
|
3.00
|
5.00
|
|
22
|
37.00 | 31.00 | 33.00 | 21.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
24
|
39.00 | 33.00 | 35.00 | 23.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
25
|
40.00 | 34.00 | 36.00 | 26.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
28
|
43.00 | 37.00 | 40.00 | 26.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
30
|
45.00 | 39.00 | 43.00 | 26.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
32
|
48.00 | 42.0 | 46.00 | 28.50 | 11.50 |
7.00
|
3.00
|
5.00
|
|
35
|
50.00 | 44.0 | 49.00 | 28.50 | 11.50 |
7.00
|
3.00
|
5.00
|
38 | 56.00 | 49.0 | 53.00 | 33.50 | 14.0 | 8.00 | 4.00 | 5.00 |
40 | 58.00 | 51.0 | 56.00 | 36.00 | 14.0 | 8.00 | 4.00 | 5.00 |
43 | 61.00 | 54.0 | 59.00 | 38.50 | 14.0 | 8.00 | 4.00 | 5.00 |
45 | 63.00 | 56.0 | 61.00 | 39.50 | 14.0 | 8.00 | 4.00 | 5.00 |
48 | 66.00 | 59.0 | 64.00 | 46.00 | 14.0 | 8.00 | 4.00 | 5.00 |
50 | 70.00 | 62.0 | 66.00 | 45.00 | 15.0 | 8.5 | 4.00 | 5.00 |
53 | 73.00 | 65.0 | 69.00 | 47.00 | 15.0 | 8.5 | 4.00 | 5.00 |
55 | 75.00 | 67.0 | 71.00 | 49.00 | 15.0 | 8.5 | 4.00 | 5.00 |
58 | 78.00 | 70.0 | 76.00 | 55.00 | 15.0 | 8.5 | 4.00 | 5.00 |
60 | 80.00 | 72.0 | 78.00 | 55.00 | 15.0 | 8.5 | 4.00 | 5.00 |
65 | 85.00 | 77.0 | 84.00 | 55.00 | 15.0 | 8.5 | 4.00 | 5.00 |
68 | 90.00 | 81.0 | 88.00 | 55.00 | 18.0 | 9.5 | 4.00 | 5.00 |
70 | 92.00 | 83.0 | 90.00 | 57.00 | 18.0 | 9.5 | 4.00 | 5.00 |
75 | 97.00 | 88.0 | 98.00 | 62.00 | 18.0 | 9.5 | 4.00 | 5.00 |
80 | 105.00 | 95.0 | 100.00 | 61.80 | 18.20 | 10.0 | 4.00 | 5.00 |
